Reviewed: MJM 53Z

MJM introduces the outboard-powered, 50-knot 53Z.
MJM 53z
The MJM 53z’s side windows slide open, and the three forward windows lift open, creating a center-console-like feel. Onne Van Der Wal

The MJM 53z is a Down East-inspired design, accented by stainless-steel bow rails that average around 30 inches high and mirror the form of the yacht’s fine entry. The rails sweep down the vessel’s razorlike profile and resolve amidships, where a cleverly placed handrail on the hardtop takes over the safety-in-transit department. A trunk cabin adds to the 53z’s ageless aesthetic, and it has function too, increasing headroom belowdecks.

Her classic look contrasts with the yacht’s modern engine package and high-tech build. Power for the 53z that I got aboard was quad 400 hp Mercury Verados. Quad 350s are standard, but either way, the power setup is a dramatic shift from the builder’s 50z, which has triple 435 hp Volvo Penta IPS600 diesels. The switch to outboards means the 53z needs considerably more fuel capacity: 910 gallons of gasoline compared with 534 gallons of diesel. To balance the 53z with the increased fuel, MJM switched from saddle fuel tanks to a centerline tank. The builder also placed the vessel’s 10-kW Westerbeke genset and standard Seakeeper 9 stabilizer aft to help maintain equilibrium. MJM’s founder, Bob Johnstone, says that naval architect Doug Zurn, who pens the MJM line, does a weight study for every build, ensuring that hulls are on an even keel.

I didn’t have a level with me, but taking in the yacht dockside in Newport, Rhode Island, she looked arrow-straight and well-proportioned. To that end, the 53z’s length-to-beam ratio is 3.5 to 1. Her length overall is 56 feet, 3 inches. Length on deck is 53 feet even, and her beam is 15 feet on the nose.

Advertisement
MJM 53z

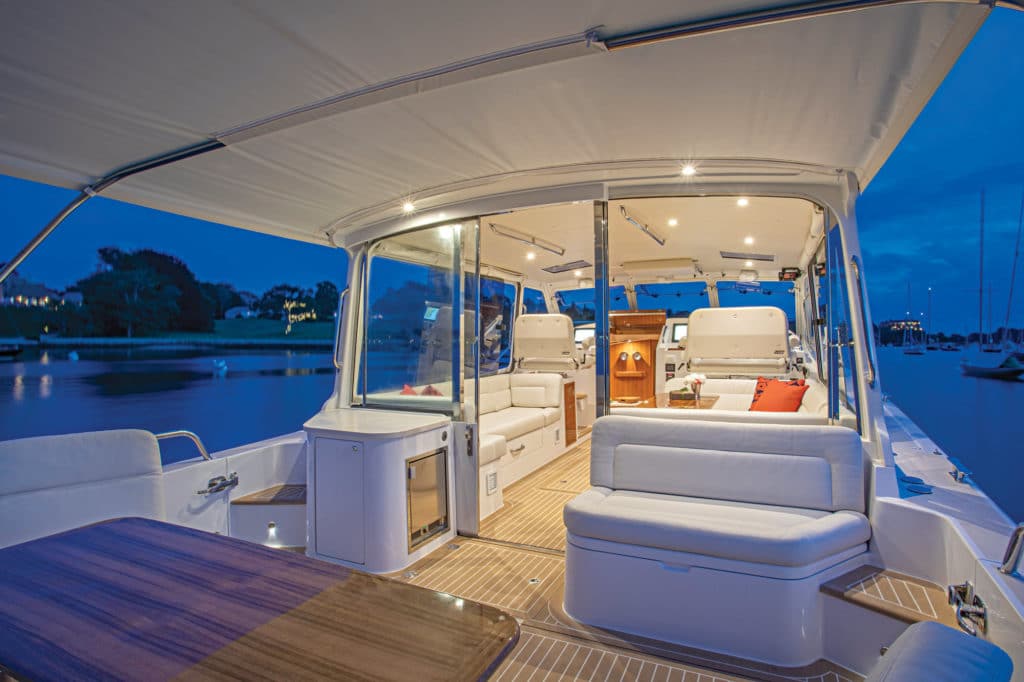

The steps from the cockpit to the side decks are 11 inches in height. The salon’s 30-inch-wide pocket door saves valuable cockpit real estate. Billy Black

As for handling, I grew up on a Down East boat, and if we saw 15 to 16 knots, we were flying, so I was curious to see what 1,600 ponies would do for the 53z. Shortly after passing under the Claiborne Pell Newport Bridge, Johnstone put the throttles down. The 53z’s acceleration was impressively smooth in the calm conditions. Bow rise was nearly nonexistent, with the hull helped in part by the yacht’s Humphree Interceptors. They were set on auto and adjusted in real time as the yacht popped out of the hole and onto plane. Sightlines were unobstructed for nearly 360 degrees.

Her average top hop was right around 49 knots, but a couple of times, I saw the vessel clip 50 and even 51 knots. The 53z was loaded with about half fuel, 120 gallons of water and four people. This speed is about 10 knots faster than the 50z’s top-end speed. MJM’s initial sea trials saw an average wide-open speed of 48.6 knots.

MJM 53z

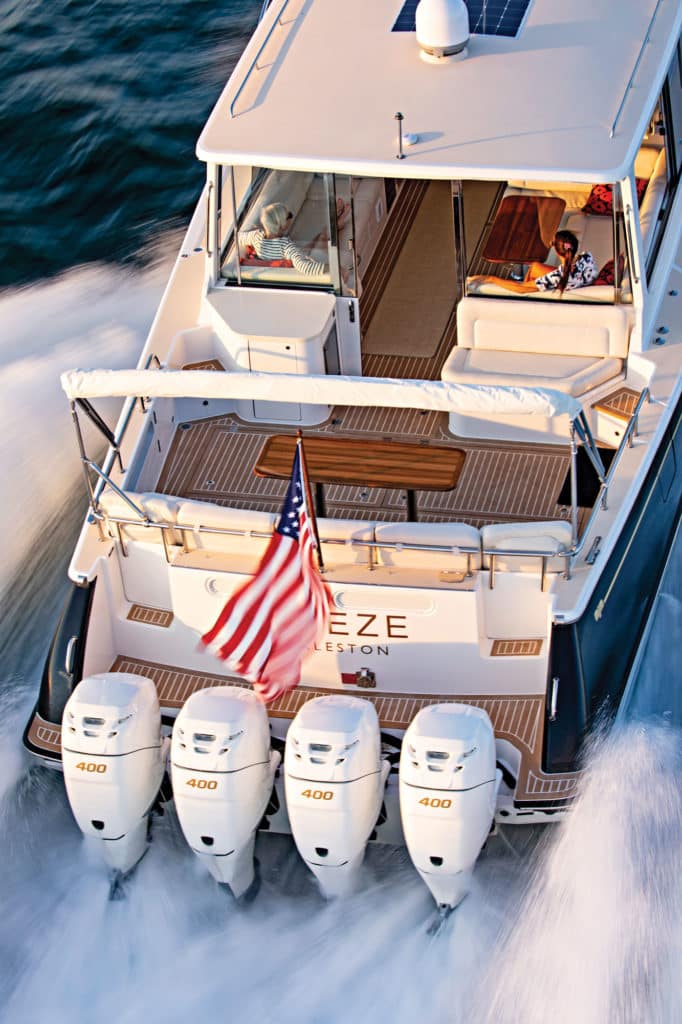

Standard power for the MJM 53z is quad 350 hp Mercury Verado outboards. Our 53z had optional quad 400s. onne van der wal

At the 53z’s maximum velocity, her four engines consume about 142.3 gallons per hour, resulting in a range of 272 nautical miles. Dial the speed back to a relatively leisurely 37 knots (around 5,000 rpm) and fuel burn drops to 114 gph, while range pops up to 297 nm. Bring the yacht down to 31.6 knots (around 4,500 rpm) and fuel burn falls off to 90 gph, while range increases to 320 nm. That’s 0.4 nm per gallon, which is a pretty consistent number for this yacht between 2,500 rpm to 4,500 rpm. At the 53z’s top speed, efficiency drops a hair to 0.3 nmpg.

Advertisement

Taking the 24-inch Edson Destroyer wheel, I throttled the 53z up to wide open. Her handling was fairly effortless. She responded instantly to wheel input. The yacht turned hard over without excessive inboard heel or bleeding off much speed. Although the sea conditions weren’t challenging, they provided insight into the fun side of this high-performing craft.

The 53z’s hull felt solid underfoot, thanks in part to her construction. The builder uses wet, prepreg epoxy resin that is post-cured (see: oven baked). Corecell foam in the hull and bulkheads adds rigidity without excessive weight. MJM uses higher-density foam in the hull bottom to better handle the rigors of running in the ocean at speed. For improved abrasion resistance, the builder employs Kevlar in the 53z’s outer skin.

This all adds up to the yacht coming in at a fighting weight of about 33,669 pounds at half-load. When you take a lightweight design and add horsepower, you get the performance I saw off the coast of Newport.

Advertisement

It’s easy to get lost in the 53z’s zip, but she also has the creature comforts that cruisers want and need. Belowdecks are two staterooms. There is a forepeak master with an en suite head and a step-up berth. An easy chair is abaft the berth and to port, if you want to sit back with a book or spend some quality time with the laptop. Johnstone suggested that I try out the chair. Admittedly, once I was in it, I didn’t want to leave it. The space is made warm with satin-finish cherry wood, and the average headroom is about 6 feet, 2 inches.

MJM 53z

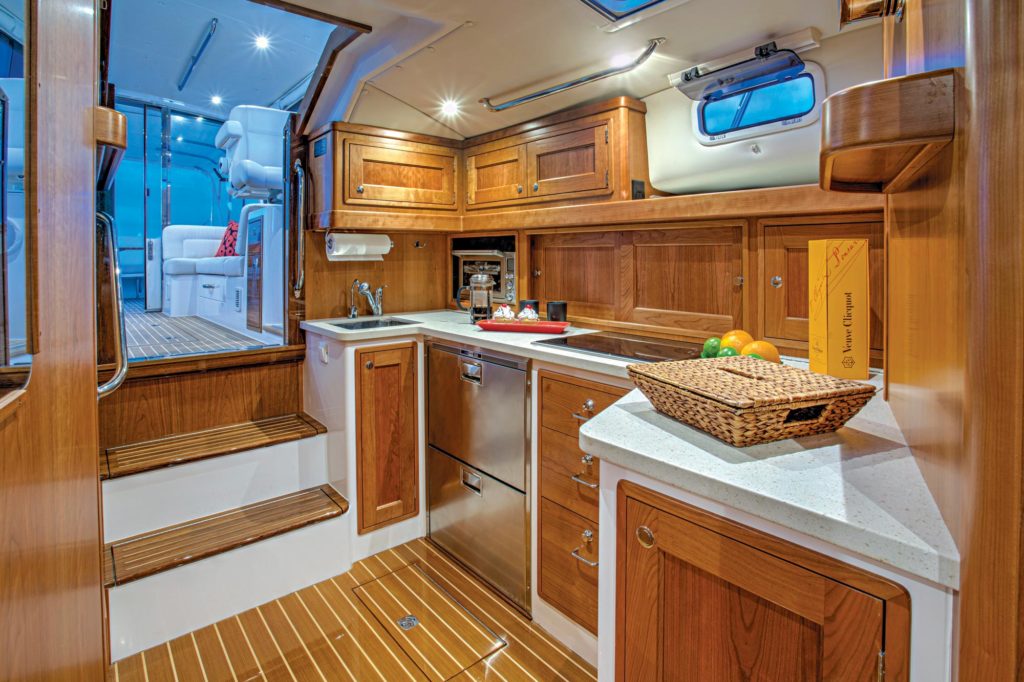

Satin-finish cherry wood warms the 53z’s interior spaces, including the galley. Countertops are Corian. Billy Black

Abaft to starboard is a guest stateroom, which can be set up with a double berth or twins. In the double configuration, the berth runs athwartships, and there is an easy chair here too. In the twin-berth setup, the berths run fore to aft, and the chair goes away. A 27-inch LG TV in this stateroom doubles as a computer monitor. There is a second head just forward of the guest stateroom that serves as the day-head.

Between the staterooms and the salon is the galley-down with a Wolf two-burner, ceramic induction cooktop, Breville microwave, 5.5-cubic-foot two-drawer Vitrifrigo fridge, Isotherm freezer and stainless-steel sink. And there is enough stowage for a cruising family to take off for a summer sojourn. If more space is needed, the stowage under the main-deck seating is wide and deep enough to fit my 5-foot-7-inch frame without trying.

Advertisement

It’s no simple task to take a yacht that has a stately look and blend that design with the modern-day ingredients of outboard power, as well as with technically intricate construction materials and methods. But MJM has managed to maintain the 53z’s Down East DNA in look and feel while providing a thrill ride of a driving experience and all the comforts of home.


Update:

MJM Yachts recently updated the belowdecks layouts for its 53-foot models, the 53z and 53zi. Whether an owner chooses outboard power (53z) or Volvo Penta IPS powerplants (53zi), there are now six accommodation plans available. To date, the builder says it has built all of them for owners.

Standard Layouts

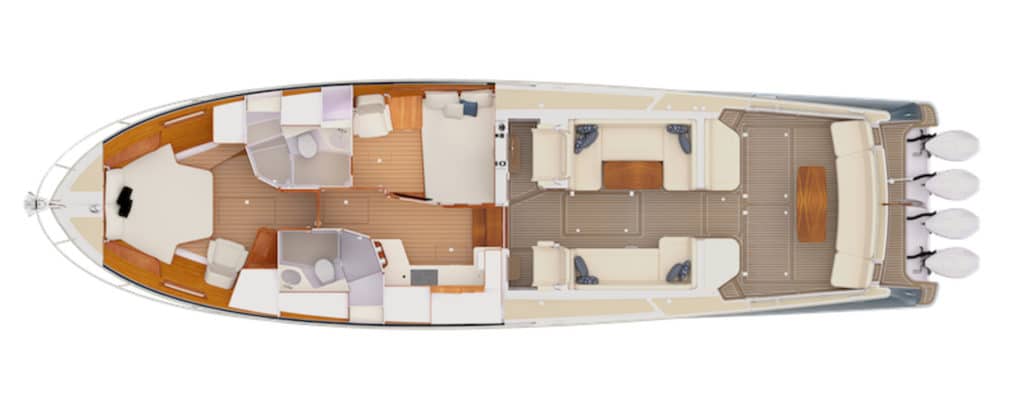

MJM 53z layout

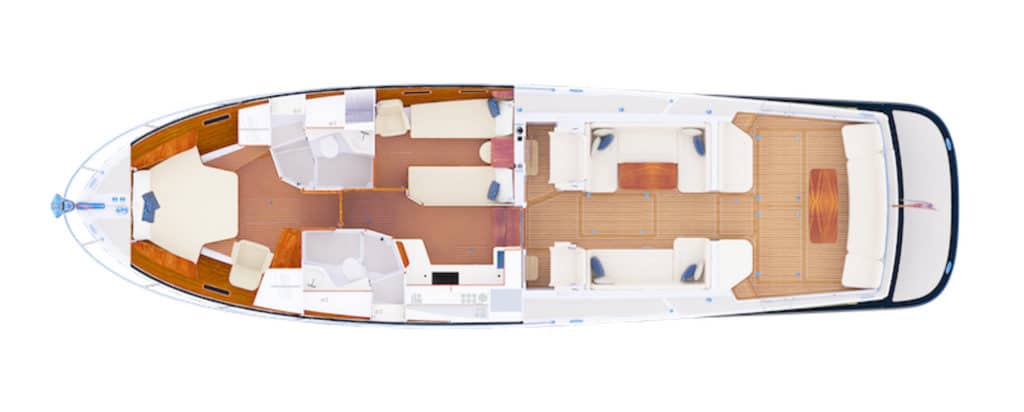

This standard great-room layout is convertible to a double berth and has an en suite head. Courtesy MJM Yachts
MJM 53z layout

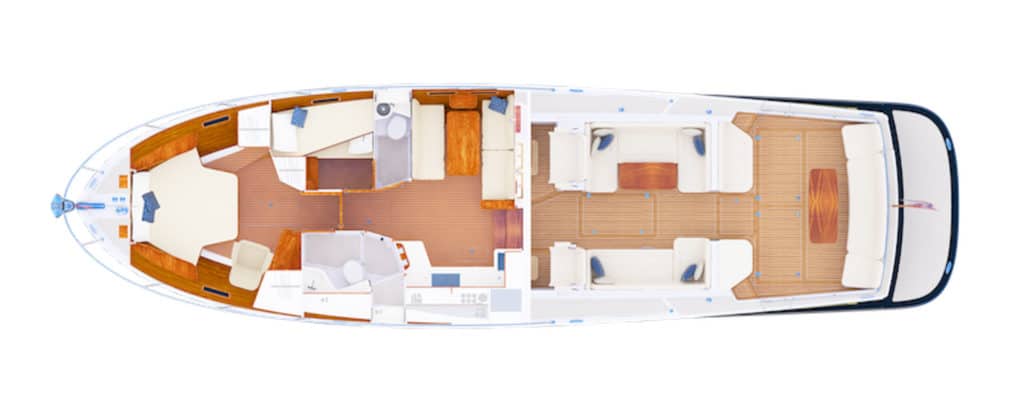

This second standard layout two includes a VIP stateroom with a double berth, reading chair, desk and an en suite head. Courtesy MJM Yachts

Optional Layouts

MJM 53z layout

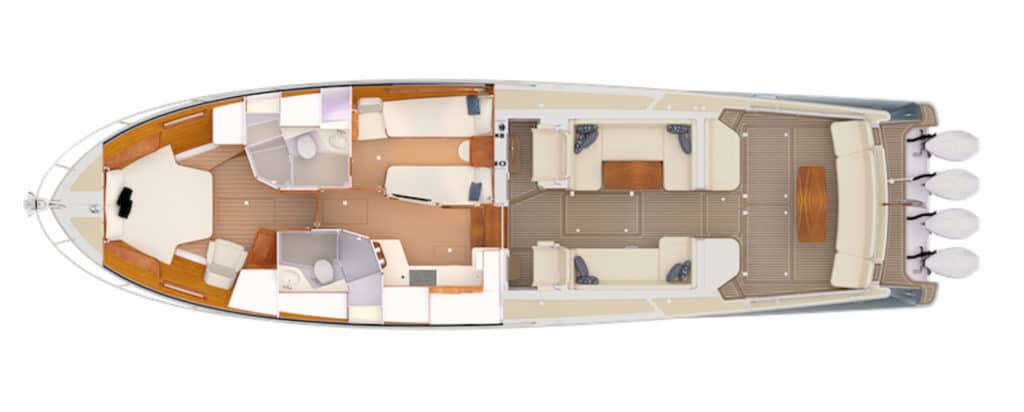

In this scenario, the great room comes with a portable-bulkhead system: It’s convertible to a stateroom with a double berth, reading chairs and an en suite head. The bulkhead tucks away between the stateroom and head. Courtesy MJM Yachts
MJM 53z layout
This layout has a guest stateroom with two berths, reading chair, desk and an en suite head. Courtesy MJM Yachts
MJM 53z layout

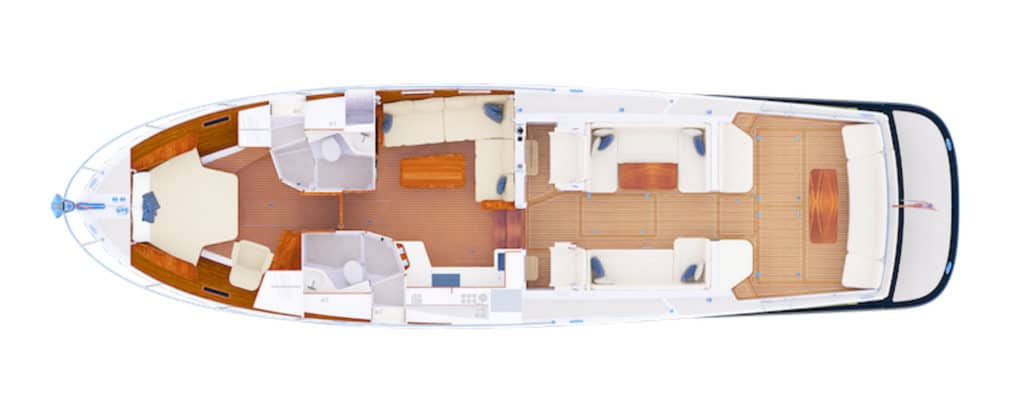

This great room setup has a convertible dinette, over-under berths in the stateroom and an en suite wet head. Courtesy MJM Yachts
MJM 53z layout
Lastly, there is a guest stateroom with two berths, reading chair, desk and an en suite head. Courtesy MJM Yachts

Take the next step: mjmyachts.com
