Zipwake Ups the Ante

Zipwake’s Series E Line is made for boats up to 100 feet.

March 25, 2020
Zipwake Series E Line
Yachts the size of this Azimut 78 now have the option of installing Zipwake interceptors. Courtesy Imtra

It has been three years since Massachusetts-based Imtra took over the Zipwake line of interceptors, and during that time, the team has been thinking big. In 2017, the Series S that Zipwake offered was for boats from 20 to 50 feet length overall. Now, Imtra has unveiled Series E, which expands the pitch-and-roll-controlling technology to yachts as large as 100 feet.

“The major restriction is the amount of lift generation you can get out of a unit,” says Jamie Simmons, Imtra’s product manager for Zipwake. “The Series S has a millimeter stroke on it. You have the blade going straight up and down in the water column to generate lift. When it was down, that blade was only 30 millimeters from top to bottom. You can only generate so much lift with a blade that size.”

Zipwake Series E Line
Previous versions of Imtra’s Zipwake interceptors would have been too small for this Hatteras GT65. Series E is plenty big. Courtesy Imtra

The new Series E, by contrast, has a 60 mm stroke.

Advertisement

“The blade that comes down goes farther than on the Series S,” he says. “It gives you more lift generation, and the units are larger on the transom. The construction is more heavy-duty. It’s a larger blade, bigger moving parts—it just has to be more robust.”

Zipwake Series E Line
Imtra now makes three different sizes of Series E Zipwake interceptors for vessels that have propeller tunnels. “You can utilize that tunnel space,” says Jamie Simmons, Imtra’s product manager for Zipwake. “The interceptor will go right over the tunnel.” Courtesy Imtra

The Series E components are part of the expanding line of Zipwake products that Imtra now offers. The company has been adding components that fit with different types of underwater hull shapes, such as chines and prop tunnels. Series E includes three straight, three tunnel and two chine interceptors. The three tunnel models (R500, R600 and R800) have different radii for prop tunnels of different sizes, while straight and intermediate blades can address different engine configurations, such as multiple outboards. Switching from a straight to a rounded blade between outboards, for instance, reduces the cavitational zone.

Zipwake Series E Line

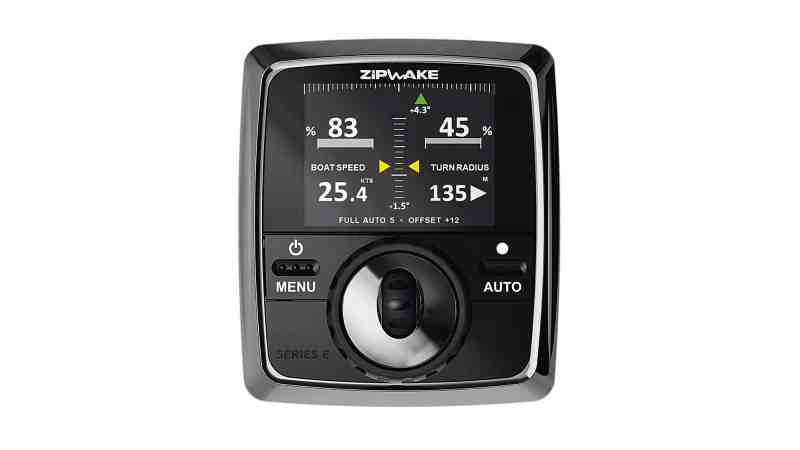

Skippers who are particularly finicky about the way their hull rides through the water can use the control pad to manually adjust a boat’s pitch and roll, but Imtra’s Zipwake product manager says that the majority of yachtsmen set the system to auto, which lets it do all the adjusting on its own. Courtesy Imtra

“With the straight edge, that zone was much larger,” Simmons says. “When you round the blade off, it brings that zone in.”

Advertisement

Going forward, he adds, Imtra’s goal is to have a wide range of Zipwake options. “We’re trying to have a solution for most every boat,” he says. “There will always be odd situations, but up to about 100 feet now with the Series E, more than likely, we can come up with a solution.”
